Introduction to the Beta Factor

The Beta Factor is a critical parameter in filtration technology. Whether you’re dealing with industrial machinery, hydraulic systems, or other filtration applications, understanding the Beta Factor can help you make informed decisions about filter selection. This article dives deep into what the Beta Factor is, why it matters, and how to use it effectively to ensure system efficiency and longevity.

What is the Beta Ratio?

The Beta Ratio, also known as the Beta Factor, measures a filter’s efficiency in capturing particles of a specific size. It provides a numerical representation of how well a filter can remove contaminants from a fluid. The Beta Ratio is determined using the ISO 16889:1999 multi-pass test standard, a globally recognized method for evaluating filter performance.

Importance of Beta Ratios in Filtration

Choosing a filter with an appropriate Beta Ratio is essential for maintaining clean and efficient fluid systems. Poor filtration can lead to:

  • Increased wear and tear on machinery
  • Reduced operational efficiency
  • Higher maintenance costs
  • Risk of equipment failure

High Beta Ratio filters help mitigate these risks by effectively removing contaminants, ensuring system reliability and performance.

How is the Beta Ratio Measured?

The Beta Ratio is calculated using a controlled testing process:

  1. Test Setup: Particles of a known size are added to a test fluid until it reaches saturation.
  2. Filtration: The fluid is passed through the filter element.
  3. Measurement: Particle counts are taken from the fluid both upstream (before filtration) and downstream (after filtration).
  4. Calculation: The Beta Ratio is calculated using the formula:

    Beta Ratio = Number of upstream particles / Number of downstream particles

    For instance, if a 5-micron filter has 100 particles upstream and 10 particles downstream, the Beta Ratio would be 10.

Decoding the Beta Factor Formula

To better understand the Beta Factor, let’s break it down:

  1. \u03b2x (Beta Factor): Represents the particle size (“x” microns) for which the ratio is calculated.

  2. Efficiency (%): The filter’s efficiency can be derived from the Beta Ratio using the formula:

For example:

  • A Beta Ratio of 2 corresponds to 50% efficiency.
  • A Beta Ratio of 75 corresponds to 98.7% efficiency.
  • A Beta Ratio of 200 corresponds to 99.5% efficiency.

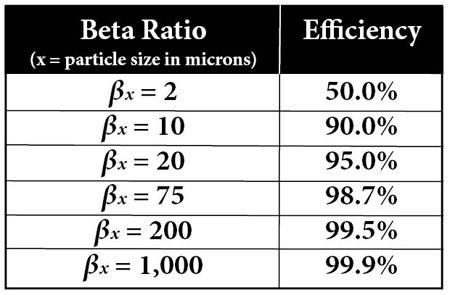

  • Each Beta factor corresponds to an efficiency of the filter, the same can be matched as per the below chart.

    Efficiency and Performance: Understanding Beta Ratings

    Filters with higher Beta Ratios are more efficient at removing particles. Here’s a quick reference guide:

    Beta Ratio (\u03b2x) Efficiency (%) Quality of Filtration
    2 50 Poor
    10 90 Moderate
    75 98.7 High
    200 99.5 Very High
    2000 99.95 Excellent

    Choosing the Right Filter Based on Beta Ratios

    When selecting a filter, consider the following:

    1. Application Requirements: Identify the level of cleanliness your system demands.
    2. Particle Size: Ensure the filter targets the specific particle size of concern.
    3. Beta Ratio: Opt for filters with higher Beta Ratios for critical applications.
    4. Manufacturer’s Specifications: Refer to the manufacturer’s recommendations for optimal performance.

    Benefits of Using High Beta Ratio Filters

    Investing in high-quality filters with superior Beta Ratios offers numerous advantages:

    • Extended equipment life
    • Reduced downtime and maintenance
    • Enhanced system performance
    • Lower operational costs
    • Improved safety and reliability

    Common Misconceptions About Beta Ratios

    1. Higher Beta Ratios Are Always Better: While higher Beta Ratios indicate better efficiency, they may not be necessary for all applications. Over-specifying can lead to increased costs without proportional benefits.
    2. Beta Ratios Are Universal: Beta Ratios are particle-size specific. A filter’s efficiency at 5 microns may differ significantly from its efficiency at 10 microns.
    3. One-Time Measurement Is Sufficient: Beta Ratios should be regularly assessed to account for filter wear and system changes.

    Conclusion

    The Beta Factor is a cornerstone of effective filtration technology, providing a quantifiable measure of a filter's efficiency in removing contaminants. By understanding the Beta Ratio, you can make informed decisions about filter selection, ensuring that your system operates with optimal cleanliness, reliability, and efficiency. While high Beta Ratios often indicate superior filtration performance, selecting the right filter involves balancing application requirements, particle sizes, and cost considerations. Armed with this knowledge, you can enhance system performance, extend equipment lifespan, and reduce maintenance costs, ultimately achieving greater operational excellence.

    FAQs:

    A: The Beta Factor measures a filter’s efficiency in capturing particles of a specific size. It’s calculated using the ISO 16889:1999 standard.

    A: The Beta Ratio quantifies particle capture, while efficiency expresses it as a percentage.

    A: A Beta Ratio of 75 or higher is considered effective for most applications, ensuring over 98% efficiency.

    A: It helps determine a filter’s capability to remove contaminants, ensuring system reliability and performance.

    A: It’s tested by passing a fluid with known particles through the filter and comparing particle counts upstream and downstream.

    A: Yes, factors like clogging, wear, and system conditions can affect a filter’s Beta Ratio.

    A: It means the filter removes 99.5% of particles of a specific size.

    A: Yes, they are tested according to ISO 16889:1999 for consistency.

    A: Consider factors like system requirements, particle size, and recommended Beta Ratios.

    A: Nominal ratings are less precise, while Beta Ratios provide specific, tested efficiency data. By understanding and applying the Beta Factor in your filter selection, you can enhance system efficiency, protect valuable equipment, and achieve optimal performance in any application.
